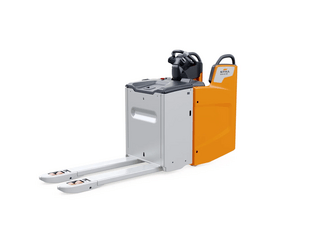

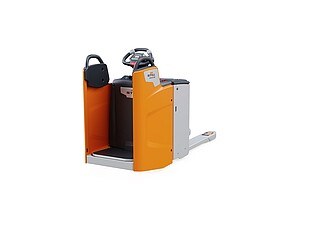

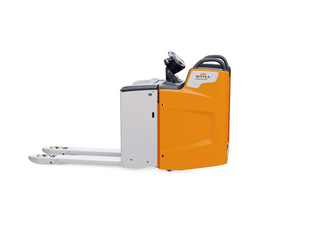

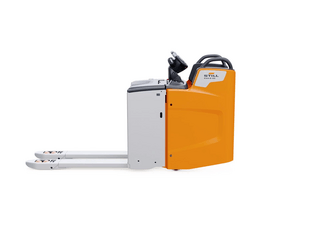

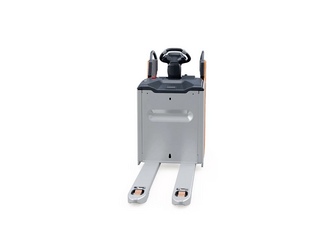

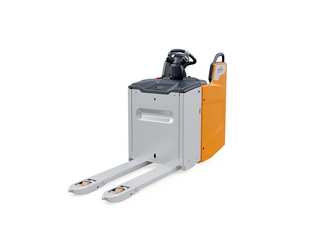

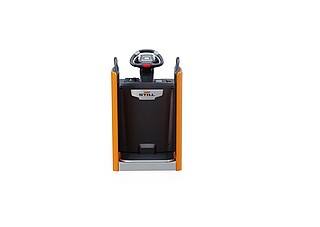

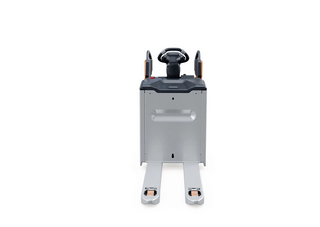

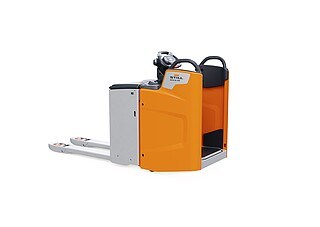

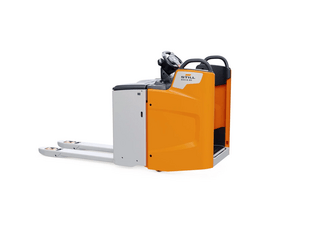

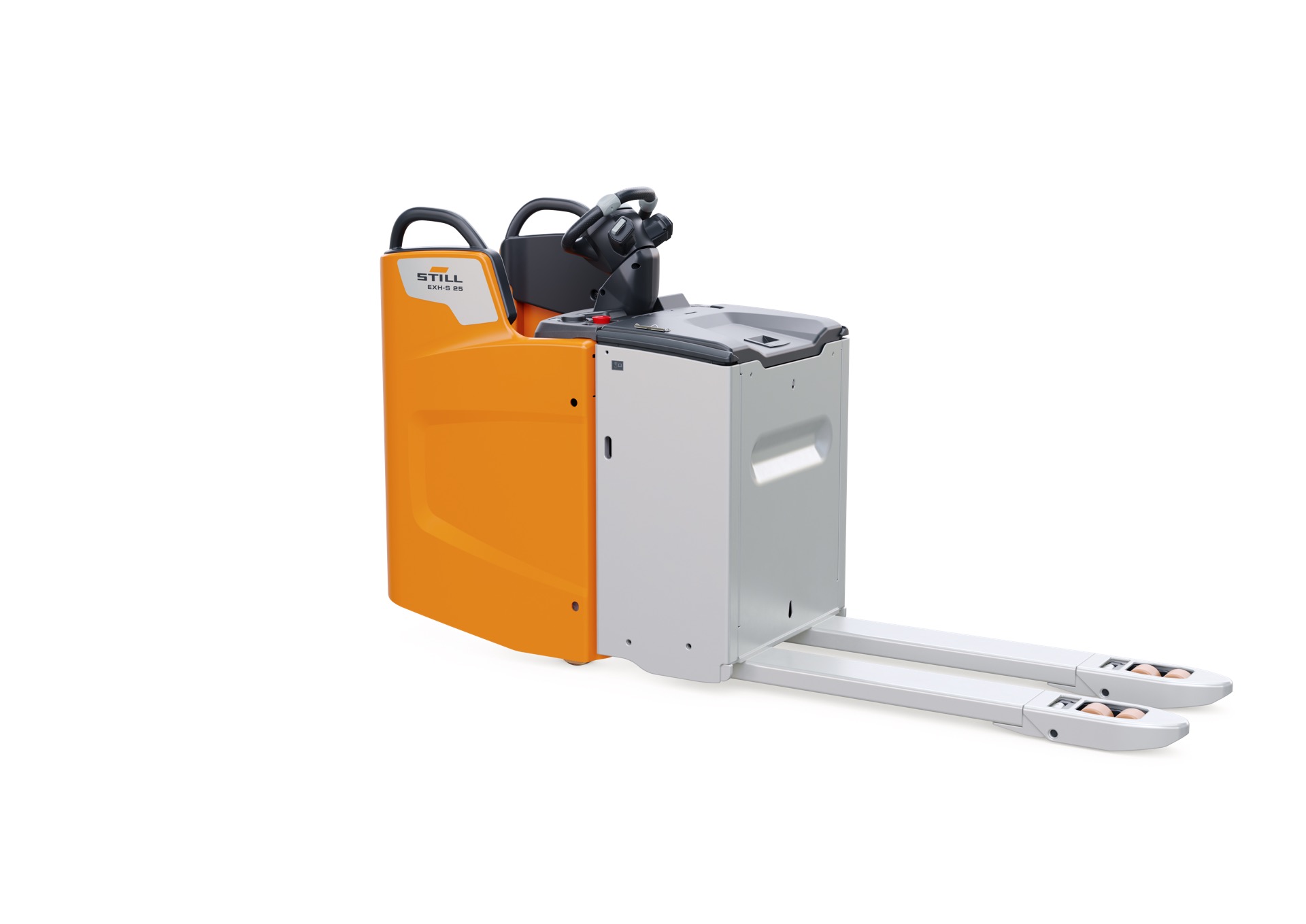

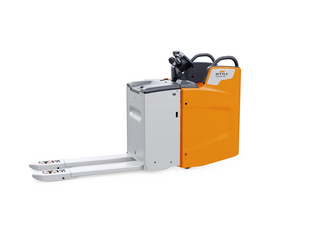

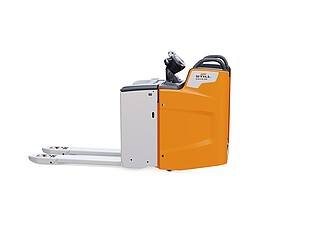

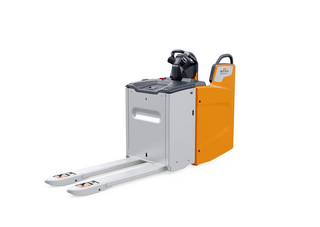

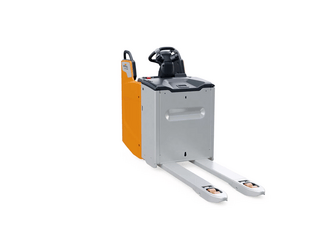

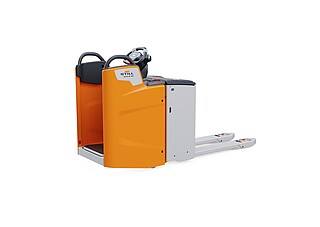

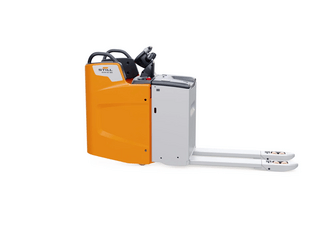

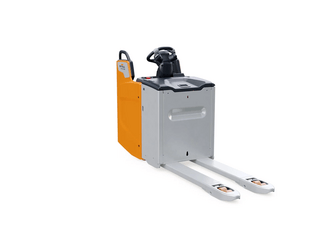

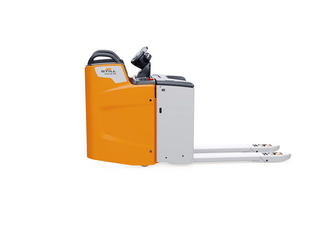

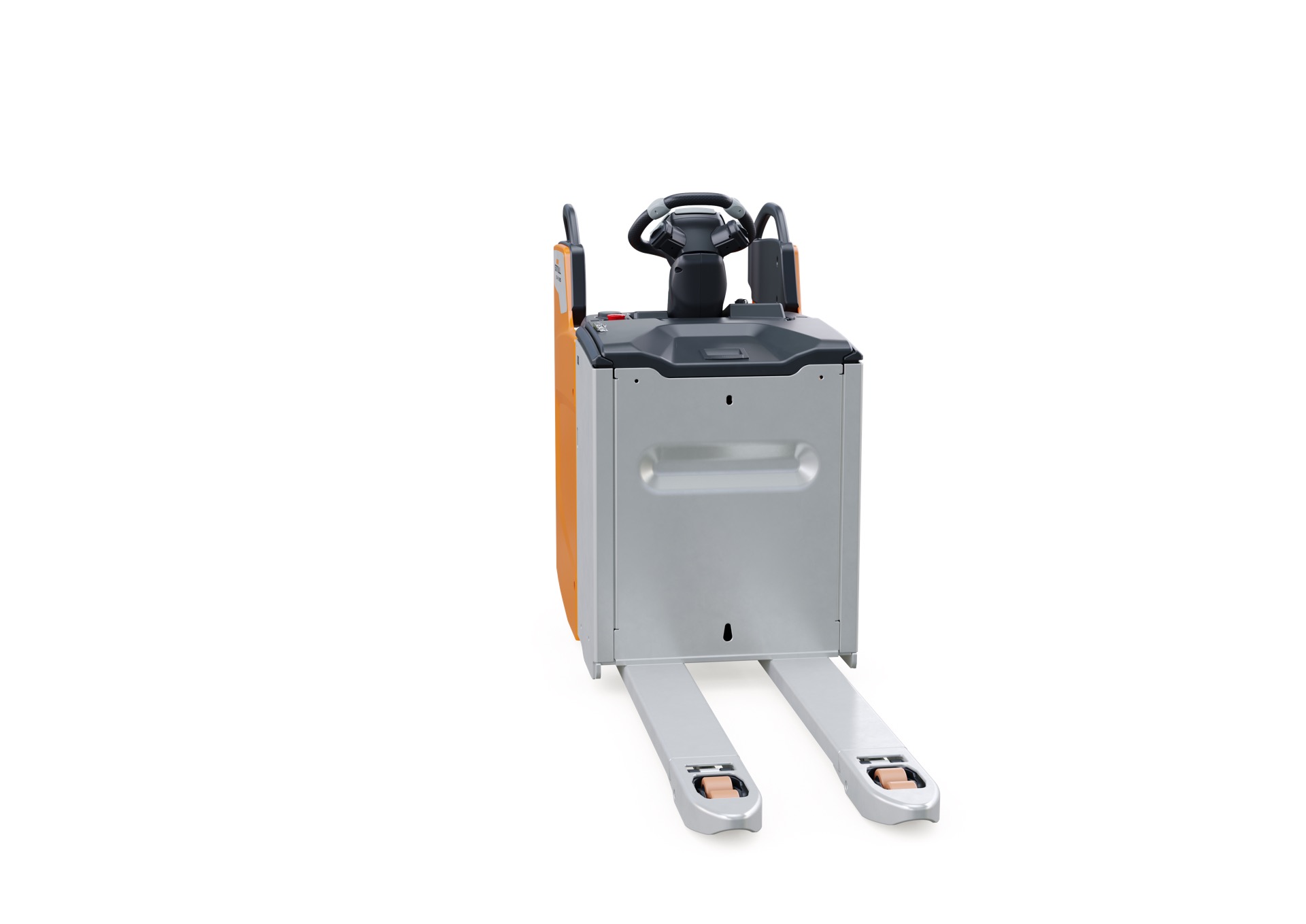

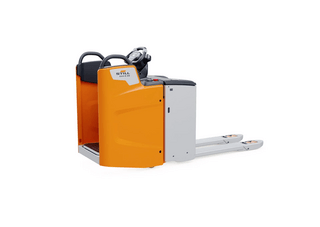

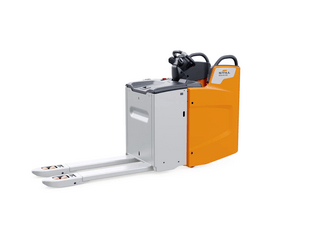

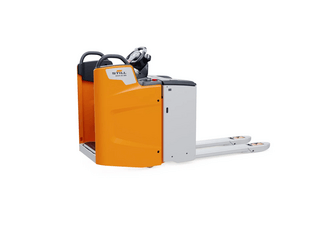

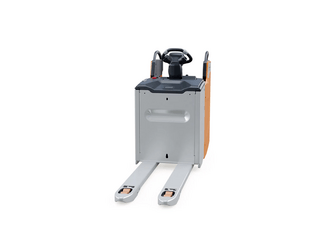

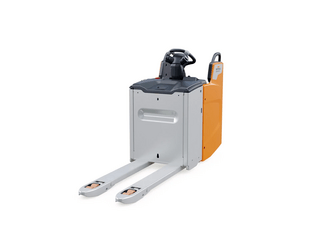

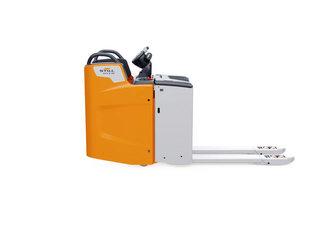

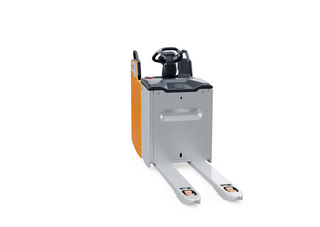

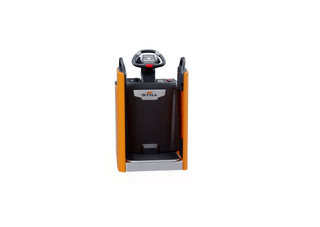

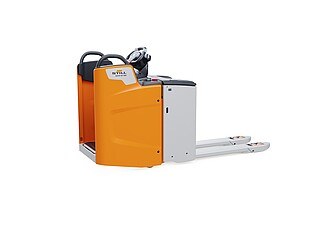

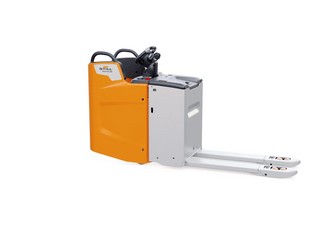

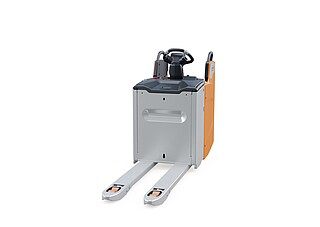

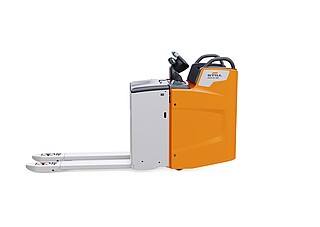

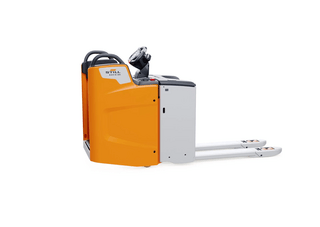

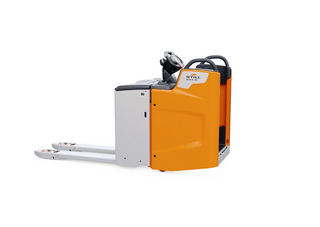

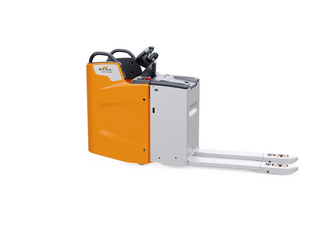

Low lift pallet truck EXH-S 20-25
Speeds things up.
Safely.
- Load capacity 2500 kg
- Rated lift 125 mm
- Speed 14 km/h
Efficient performance, safe and convenient operation, reliable flexibility
The EXH-S pallet truck combines all of these features to perfection. With a maximum lifting capacity of 2,500 kg, a swift top speed of 14 km/h and the ability to move two pallets at once thanks to the extra-long forks, the EXH-S features unrivalled performance. Thanks to the intuitive operating concept, you can rely on the height-adjustable STILL Easy Drive steering wheel with integrated display and rocker switches at all times.
This feature ensures that left- and right-handed operators always have full control of all functions, without having to change grip. The optional, individually adjustable, air-cushioned stand-on platform also provides optimal protection for the operator’s back, even in the toughest applications. Speaking of applications, the EXH-S equips you for any storage situation and ensures you benefit from flexibility when it comes to configuration variants. All truck variants have an ultra-robust chassis. This provides extra protection for demanding ramp applications, for example. Those who choose the lithium-ion variant as an option can interim charge the battery at any time and benefit from maximum flexibility.
The "Simply Efficent" factors: Performance attributes as a measure of economic efficiency
Simply easy
Smooth steering and intuitive operation
of all functions for left- and right-handed operators with STILL Easy Drive steering wheel
Easy access and optimal protection
for the operator’s back and joints: low access point and adjustable, air-cushioned stand-on platform with integrated compressor available as an option
Optional built-in charger
for decentralised charging at every power socket
Optimal utilisation of storage space:
compact dimensions and high manoeuvrability facilitate narrow working aisles
A high level of comfort and excellent driving on any surface: the stand-on platform is mechanically or pneumatically suspended, depending on the intended use
Simply powerful
Fast goods handling:
up to 2,500 kg lifting capacity and an optional maximum speed of 14 km/h for the EXH-S 25
Built for continuous operation:
reliable and low-maintenance drive
Swift, safe movement on ramps: high-powered drive and lift motor and 5-wheel chassis with sprung support wheels
Instant charging:
lithium-ion model achieves 50 percent charge level in only 30 minutes and is fully charged in only 90 minutes
Designed to handle even the toughest applications:
robust, durable chassis made from solid steel
Simply safe
Simply work with precision thanks to unobstructed field of vision:
free view mast and centrally positioned tiller
Accidental roll-back impossible:
automatic stop function even on ramps
Fast and safe cornering:
Curve Speed Control automatically adapts speed to the steering angle when cornering
Only moves off once the operator is standing safely:
optional foot sensor determines whether the feet are within the truck’s contour (EXH-S)
Safe load handling in confined spaces
thanks to compact dimensions
Simply flexible
Suitable driving programmes for any application,
from maximum handling power to optimal efficiency: ECO, BOOST or Blue-Q
Ready for use at all times:
battery capacities up to 500 Ah and optional STILL lithium-ion battery for round-the-clock availability
Decentralised and flexible charging
at any power socket with the optional built-in charger

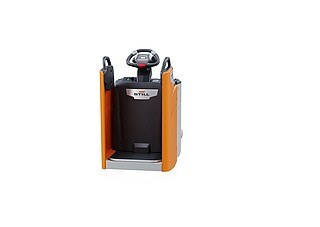

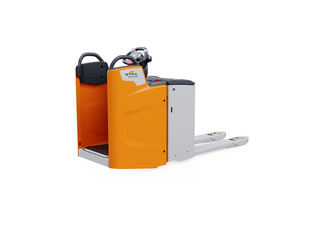

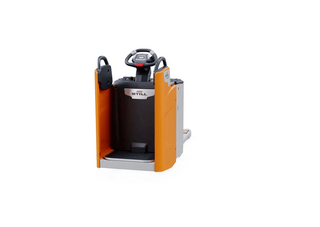

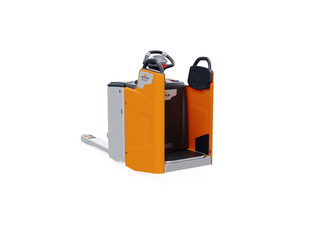

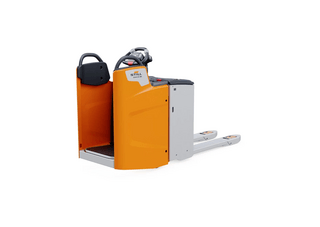

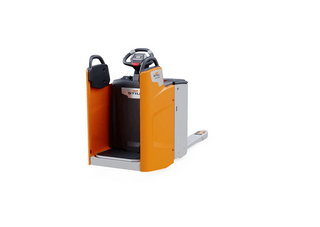

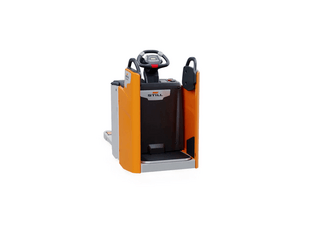

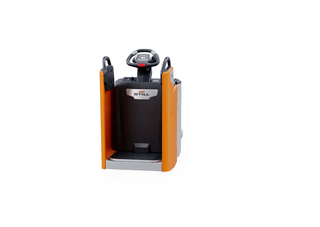

Flexibly configurable driver’s cab for various main applications, from frequent ramp driving through to long transport distances: rear access, side access or backrest on the EXH-S
Simply connected
Versatile, flexible access control
with FleetManager 4.x
Fast service analysis
and parametrisation of settings thanks to CAN bus interface
Easy integration into material flow management system
thanks to mms provision
STILL Li-Ion Technology inside
The perfectly harmonised power system for reducing operating costs and increased truck availability.
More about STILL Li-Ion Technology
|
Model
|
Maximum capacity (kg)
|
Maximum lift height (mm)
|
Travel speed (km/h)
|
Battery voltage (V)
|
|---|---|---|---|---|
| EXH-S 20 / Li-Ion | 2.000 | 125 | 12.0 | 24 |
| EXH-S 25 / Li-Ion | 2.500 | 125 | 14.0 | 24 |
Downloads
The document provided for download is the updated version of the operating instructions for the standard truck. It does not include descriptions of customer options (Customer Option). For a concrete truck, please request the respective specific manual according to the serial number and the year of production from the STILL spare parts service.
